2026 Putzmeister 33 Meter Concrete Boom Pump

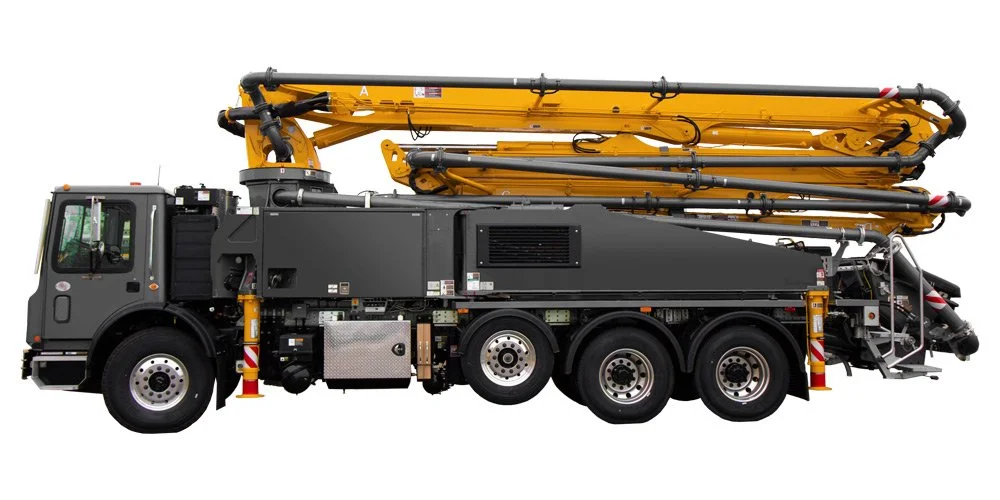

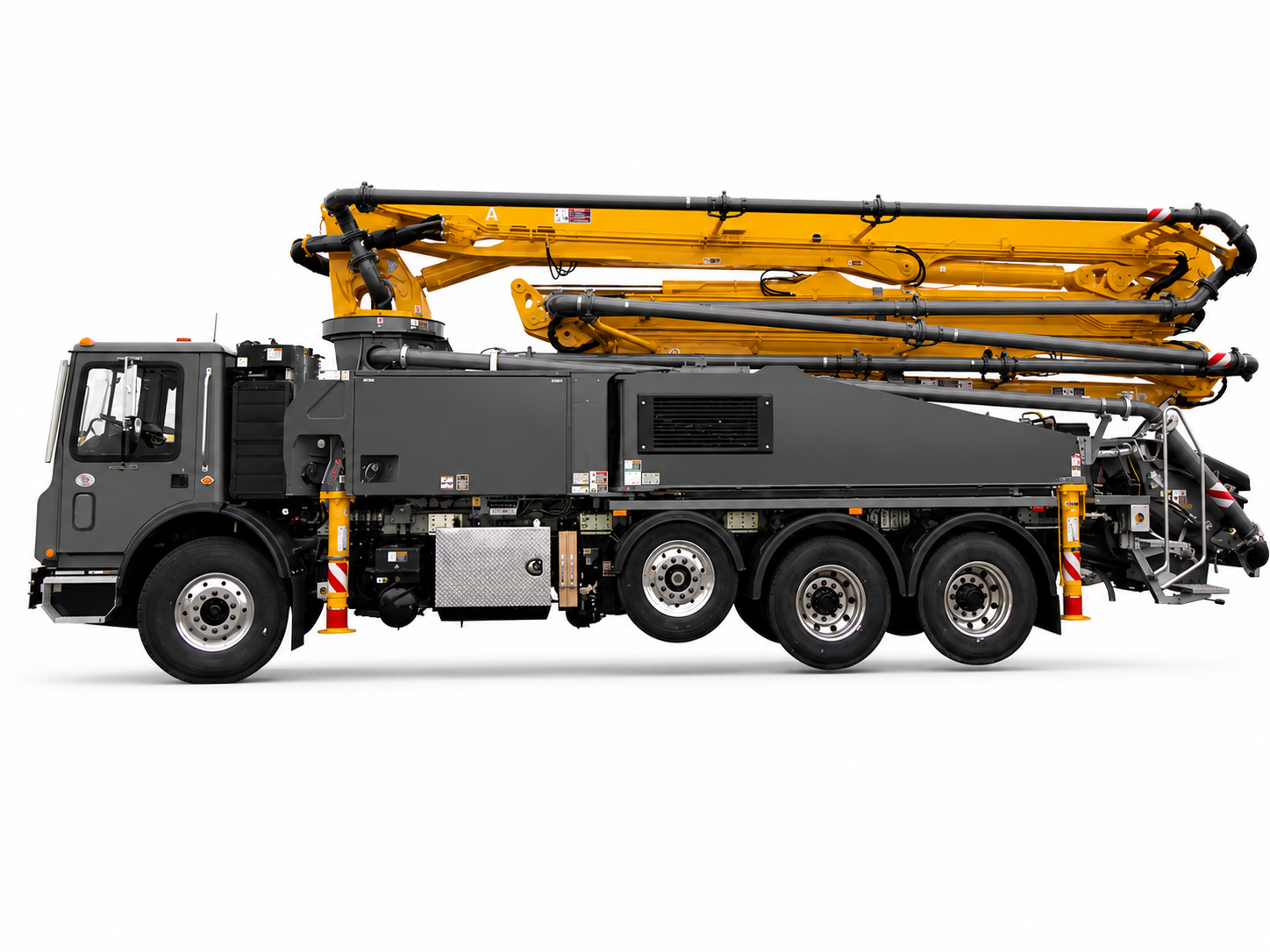

33Z-Meter Truck Mounted Concrete Boom Pump

The 33Z-Meter Concrete Boom Pump enhances the Putzmeister 30-Meter class portfolio. The time-proven design of the 33Z features a reduced outrigger footprint and the latest Ergonic® 3.0 technology.

The 33-meter (105'4") shares a pedestal with the 36-4 that is strong and stable. The pedestal is based on the one used on the 38-5- and 39-meter models that have high product maturity. The 33-meter gains automatic lubrication of the four-point bearing and A-hinge, so there is no need to climb up onto the machine to reach lubrication points. Because the 33-, 36-, and 39-meter pumps are “cousins”, commonality of spare parts provides a significant service advantage to multiple pump fleets. However, the biggest advantage of the new 33-meter boom pump is the low unfolding height of 24.11 feet.

• Number of sections: 4

• Vertical Reach: 105'4"

• Horizontal Reach: 100'1"

• Unfolding Height: 24'11"

• Rotation: 365 deg

• End Hose Length max.: 10'

• End hose - Diameter: 5 "

• Outrigger spread L-R - front hydraulically extended out & down: 18'1"

• Outrigger spread L-R - rear hydraulically swing out & extend down: 23'1"

• Length x Width x Height: 35'7" x 8'2" x12'10"

• Front Axle Weight: 18641 lbs

• Rear Axle Weight: 32833 lbs

• Total Weight (approx.): 51474 lbs

• Wheelbase: 223"

Key Features

• Intelligent Low Stroke (iLS) pump cell

• Low unfolding height

• Same pedestal than the 36Z

• LED Lights

• Complete Water Tank Solution
