NEW — AVAILABLE TO ORDER
This is a new-production concrete pump and is not currently in stock. Units are available to order and may be configured to meet customer requirements. Pricing and lead times are subject to manufacturer availability.

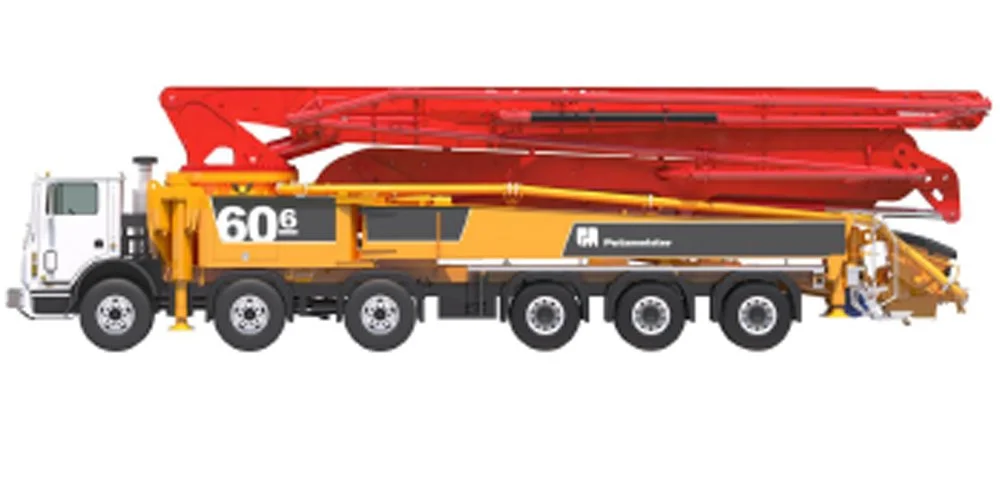

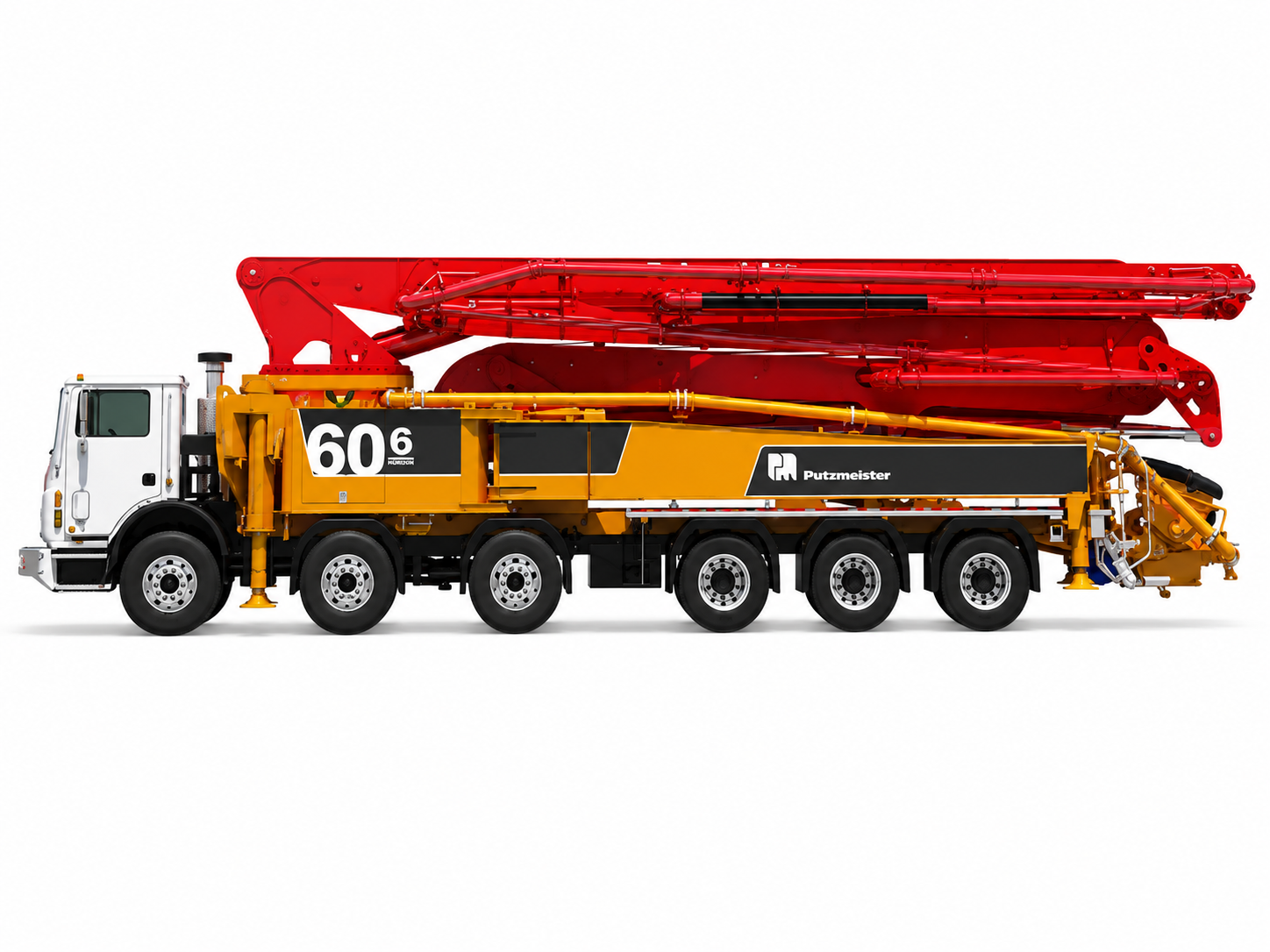

The 60RZR-Meter features a 6-arm placing boom with RZR-folding with maximum flexibility, thanks to 205° rotation angle at the last hinge.
Number of sections: 6
Boom Style: RZR_>Folding
Vertical Reach: 194'3"
Horizontal Reach: 177'10"
Reach from Front of Truck: 167'0"
Reach Depth: 144'8"
Unfolding Height: 42'8"
Rotation: 365 deg
End Hose Length max.: 10' "
End hose - Diameter: 5 "
Delivery Line: 5"/1302 psi
Outrigger spread L-R - front hydraulically extended out & down: 39'11"
Outrigger spread L-R - rear hydraulically swing out & extend down: 36'1"
Length x Width x Height: 48'2"x8'2"x13'2"
Front Axle Weight: 53,780 lbs
Rear Axle Weight: 53,540 lbs
Total Weight (approx.): 107,320 lbs
Wheelbase: 334 "
Key Features
Putzmeister hydraulic circuit and the latest core pump technology for maximum efficiency and up to 45 % oil saving
Intuitive operation thanks to Ergonic® 3.0
All information on the display of the remote control. Complete control and all the information at the workplace at all times
Continuous delivery line with nominal diameter of DN 125/5"
Small support width with flexible support, space-saving structure
Robust and steady thanks to reinforced substructure, compact boom pedestal and TRDI support
Lower service costs with maintenance-free components and smaller quantities of operating fluids, consumables, etc.
Lower weight with TRDI support structure compared to the 63Z-Meter with TRDV support
Please submit quote request below and we will get back to ASAP!
