Big Boom Expertise In A Smaller Machine

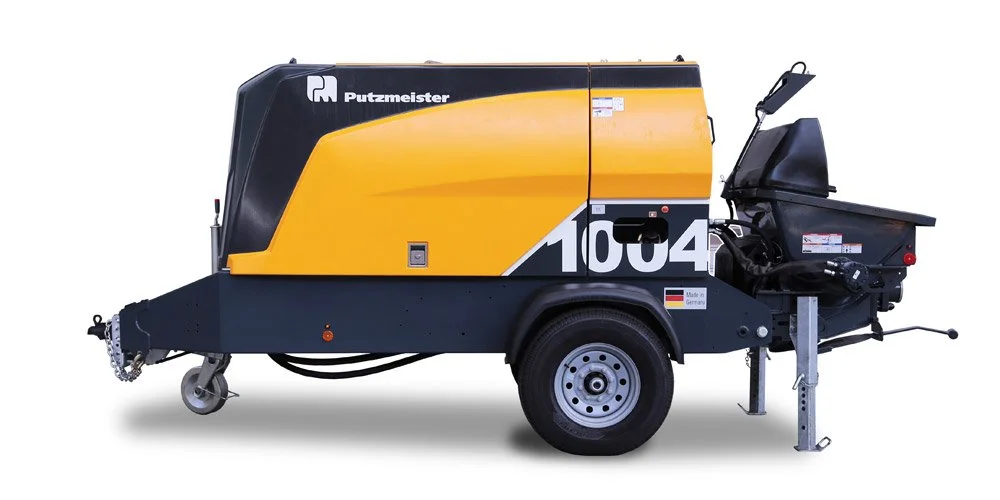

The Putzmeister Thomkatt TK 1004 D4F is the compact concrete pump in the 1000 series, equipped with a Deutz diesel engine and the latest Ergonic ® 3 PS control. With the TK 1004 D4F, it is possible to deliver normal concrete with a grain size of up to 1.25" (32 mm).
The TK 1004 D4F Trailer-Mounted Concrete/Shotcrete Pump is ideal for shotcrete work, this pump also works well in a wide variety of concrete placing jobs and for pumping structural concrete.
General Information
Output: 43 yd³/hr
Delivery Pressure: 1160 psi
Max. Aggregate Size: 1.25 "
Strokes: 32
Engine: Deutz TCD2.2
Engine Power: 74 hp
Material Cylinder Diameter-Stroke Length: 7"/39"
Hopper capacity: approx. 10.6 ft³
Outlet Diameter: 5 "
Length x Width x Height: 189"x68"x86.6"
Weight: 6393 lbs
Trailer Type: Single/Tandem
