More Horsepower for Shotcrete Work, Ideal for a Wide Variety of Concrete Placing

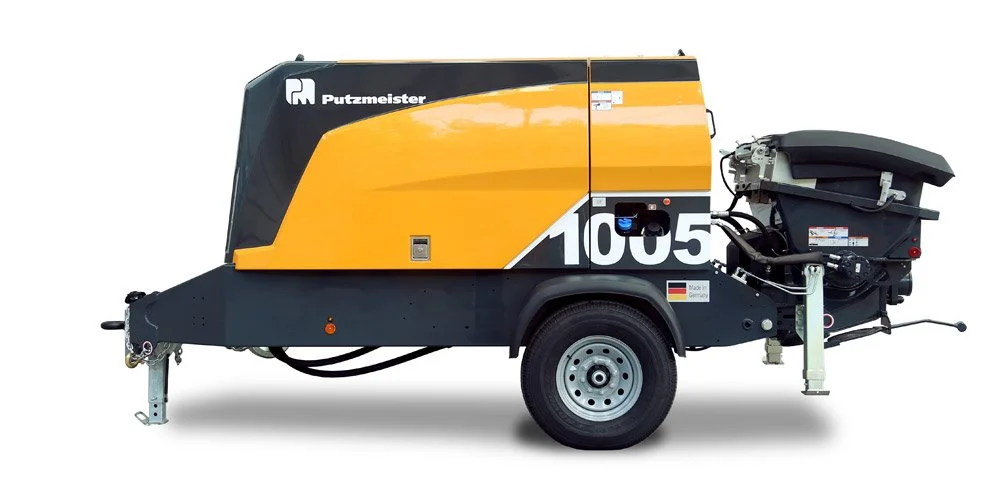

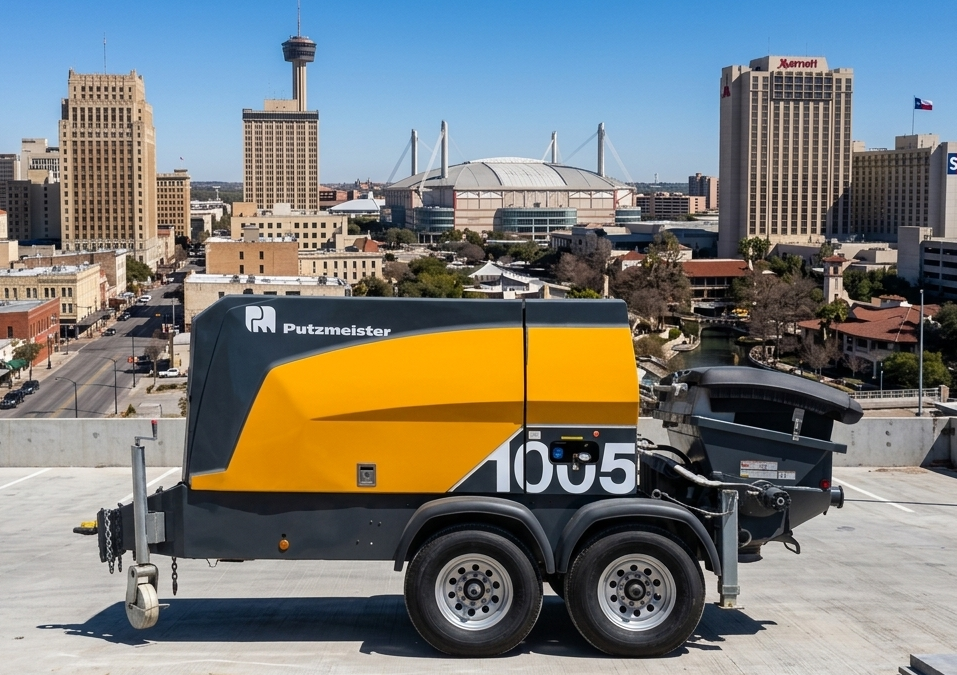

The Putzmeister TK 1005 D4F is the compact concrete pump in the 1000 series, equipped with a Caterpillar CAT 3.6 diesel engine and the latest Ergonic ® 3 PS control. With the TK 1005 D4F, it is possible to deliver normal concrete with a grain size of up to 1.25" (32 mm).
It is ideal for a wide variety of concrete placing jobs and for pumping structural concrete. It features an angled hopper that’s easier to fill and clean. The TK 1005 D4F can pump a variety of materials at up to 64 yd³/hr (49m³/hr), handle the harshest mixes, and tackle a variety of civil applications.
General Information
Output: 64 yd³/hr
Delivery Pressure: 1155 psi
Max. Aggregate Size: 1.25 "
Strokes: 45
Engine: CAT 3.6
Engine Power: 101 hp
Material Cylinder Diameter-Stroke Length: 6"/39"
Hopper capacity: approx. 10.6 ft³
Outlet Diameter: 5 "
Length x Width x Height: 189"x68"x86.6"
Weight: 7385 lbs
Trailer Type: Single/Tandem
