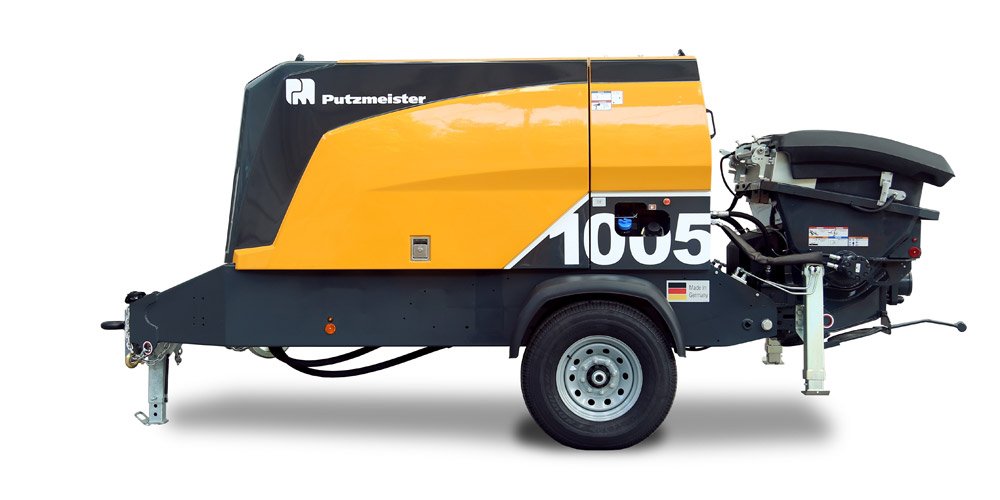

Designed Specifically For The Shotcrete Contractor
The Putzmeister TK 1005 H D4F has plenty of power with a 127 hp (95 kW) Caterpillar CAT 3.6 diesel engine and a maximum output of 65 yd³/hr (50 m³/hr). With this, you can push low slump shotcrete mixes long distances with little loss of volume.
General Information
Output: 65 yd³/hr
Delivery Pressure: 1465 psi
Max. Aggregate Size: 1.25 "
Strokes: 46
Engine: CAT 3.6
Engine Power: 127 hp
Material Cylinder Diameter-Stroke Length: 6"/39"
Hopper capacity: approx 10.6 ft³
Outlet Diameter: 5 "
Length x Width x Height: 188.4"x68"x 86.6"
Weight: 7385 lbs
Trailer Type: Single/Tandem
