Powerful Diesel-Powered Concrete Pump Ideal For Structural Concrete Jobs

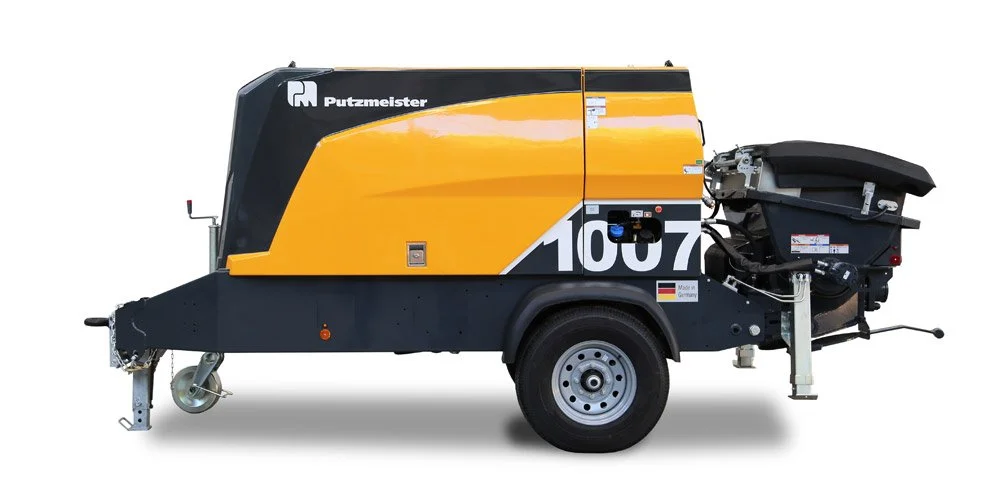

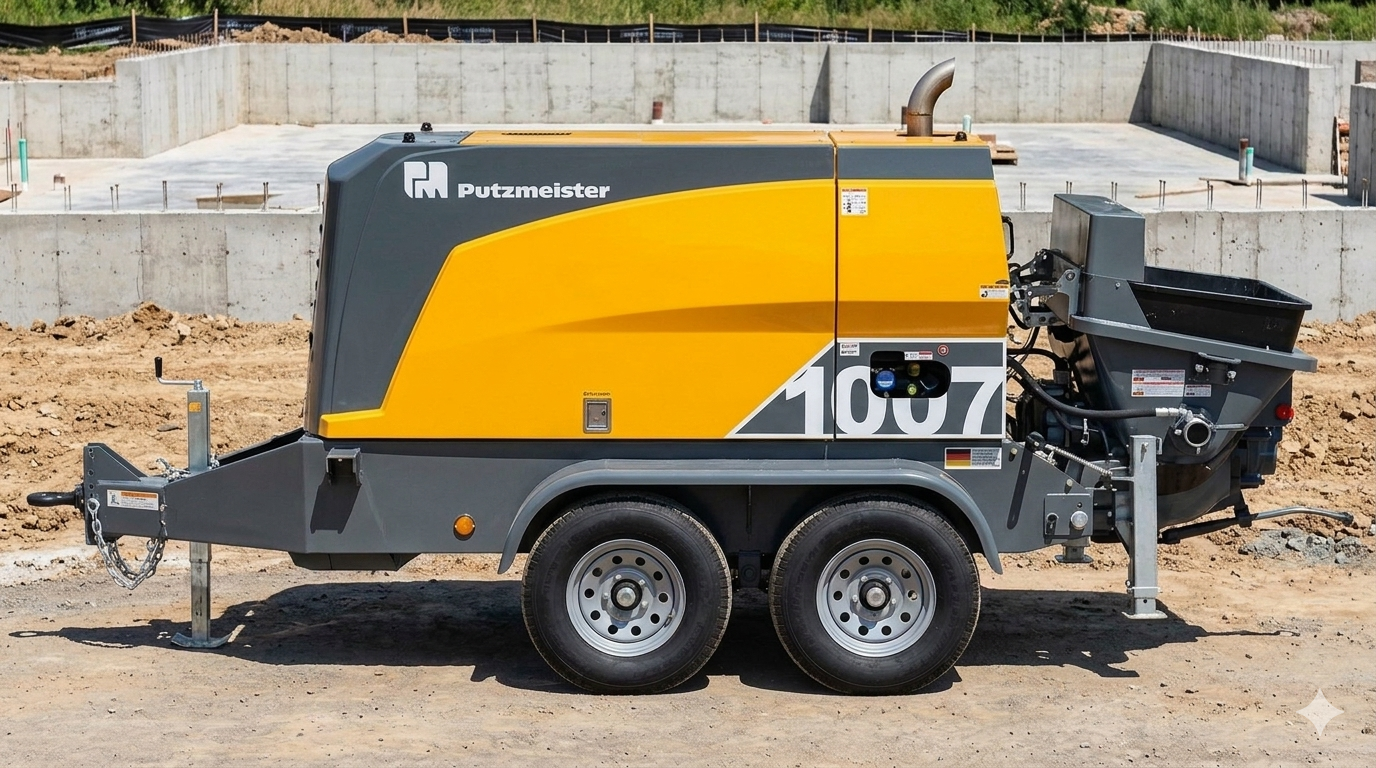

The Putzmeister TK 1007 D4F is the compact concrete pump in the 1000 series, equipped with a Caterpillar C3.6 diesel engine and latest Ergonic ® 3 PS control. With the TK 1007 D4F, it is possible to deliver normal concrete with a grain size of up to 1.25 "
It can handle a variety of materials, including the harshest mixes. With a maximum volume output of up to 94 yd³/hr (72m³/hr), the TK 1007 can tackle a variety of civil applications.
This concrete pump is available with F8 or F80 chassis.
General Information
Output: 94 yd³/hr
Delivery Pressure: 1230 psi
Max. Aggregate Size: 1.25 "
Strokes: 46
Engine: CAT C3.6
Engine Power: 101 hp
Material Cylinder Diameter-Stroke Length: 7"/39"
Hopper capacity: approx. 10.6 ft³
Outlet Diameter: 5 "
Length x Width x Height: 188.4"x68"x86.6"
Weight: 7385 lbs
Trailer Type:Single/Tandem
